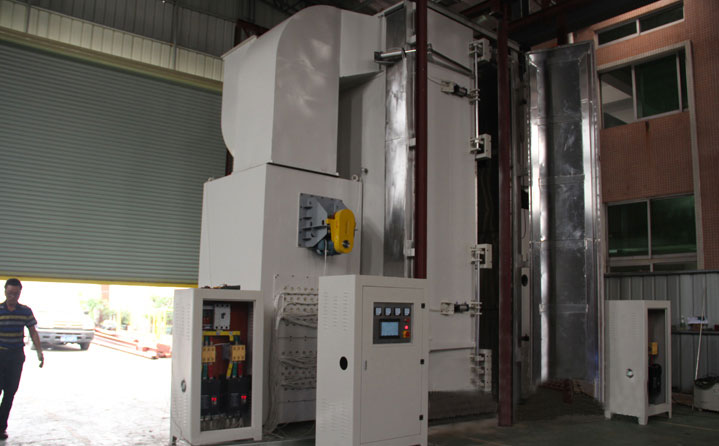

High temperature automatic drying line of solar industry
High temperature automatic drying line of solar industry
Technical specifications and parameters of high temperature automatic drying line in solar energy industry
1、Inner size：W800*H4600*D3000mm；
2、Dimension（around）：W4740*H5300*D3000mm；
3、Temperature range：Indoor temperature～'550℃；
4、Heating rate：≤8℃/min；
5、Shell temperature, environment temperature rise shall not exceed ' 10 ℃, except around the door.
6、Circulation mode: upper and lower circulation;
7、Power supply: three-phase five-wire system, 380V, 50HZ;
8、Gross power：600KW。
Structure characteristics of solar energy industry’s high-temperature automatic drying line chamber
1、Shell material: it is made of 2mm thick Q235 cold-rolled steel sheet (with best strength, plasticity and welding comprehensive performance), which is bent and welded
2、Made of 2.0mm thick SUS304 stainless steel plate;
3、Sealing material: the sealing strip is made of silica gel, which can withstand temperature without deformation, and the door and inner tank are double-layer sealed to enhance the sealing effect.
4、Door: SC standard cylinder is installed on the front and back door and the hinge side of the top department. The door opening and closing can be linked with automatic trolley, which can realize automatic feeding and discharging operation
